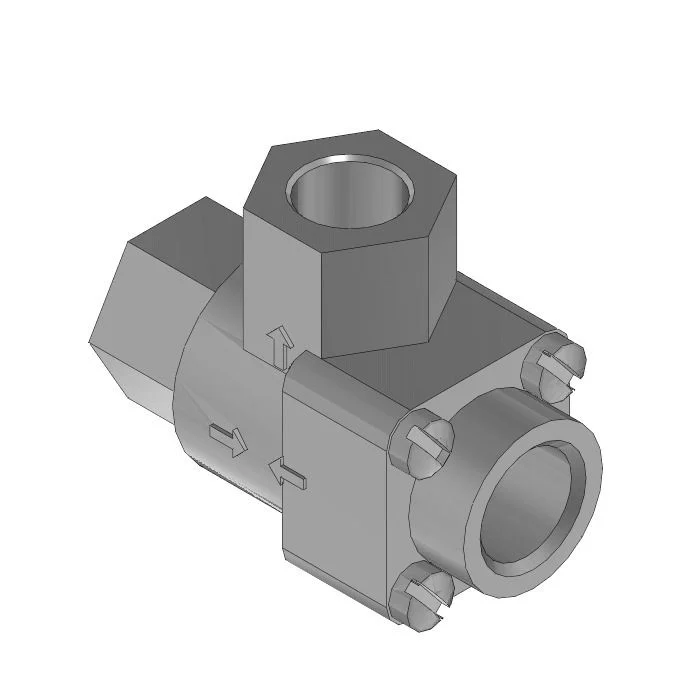

SV-3-316 Shuttle Valve
Stainless Steel Shuttle Valve
The VERSA Shuttle Valves are constructed of 316 stainless steel with resilient seals providing tight shut-off. Shuttle Valves are 3/2 valves primarily used to charge and discharge a pressure line or chamber from two - or more - sources. When a pressure signal enters the port blocked by the shuttle, it will cause the shuttle to shift toward the high-pressure port.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
| Actuation | Automatic shift by pressure signal |
| Function | Selector (2 inlets-1 outlet), 2-pos [8-way] |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 5-200 psi |
| Valve Pressure Range (BAR) | 0.34-13.8 bar |
| Primary Flow | 1.9 Cv |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Temperature Range (F) | -4°F to 300°F |
| Temperature Range (C) | -20°C to 149°C |
| Body & Internal Parts | 316L Stainless Steel |
| Weight | 0.390000 |
